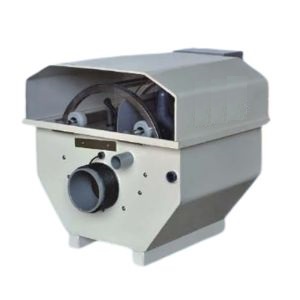

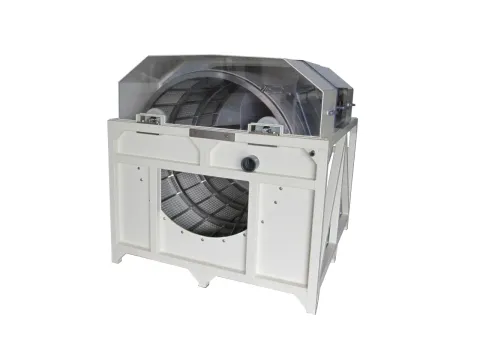

Drum Filter

,

Drum Filter

Automatic high-pressure flushing and sewage discharge, residual bait and feces are immediately eliminated, and will not ferment and pollute the water quality and improve the harvesting rate.

Drum Filter



Automatic high-pressure flushing and sewage discharge, residual bait and feces are immediately eliminated, and will not ferment and pollute the water quality and improve the harvesting rate.

Feature:
1. The suspended particles larger than the mesh diameter (30μm/60μm/90μm) will be blocked to make the clean water will flows out.

2. When the internal impurities accumulated makes the water level rise (about 30cm),, the liquid level (float) switch will activate the controller starting flushing. The impurities will be collected in the sewage tray, and then discharged to achieve the effect of purifying and filtering water quality.

3. The bracket is made of stainless steel 316L, has strong support.

4. The mesh is made of plastic film and PET plastic mesh, durable, wear-resistant and rusty free.

5. Fan-shaped high-pressure flushing filter is used for a strong cleaning power.

6. A sewage collection tray to have the impurities be well collected.



Model DF-1162B DF-1163B DF-1503B DF-1504B
Base Materials PVC
Net Materials High Pressure resistant PE
Water Flow 120-200m3/hr 180-300m3/hr 250-400m3/hr 320-500m3/hr
